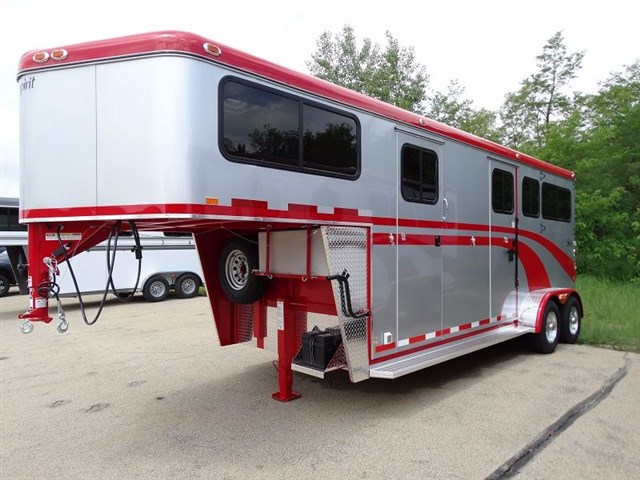

EquiSpirit 2 Horse Walk-Through Gooseneck Trailer (2016)

Type: Horse Trailer

Configuration: 2 Horse Walk-Through Gooseneck with Side Ramp

Construction: Galvanized Steel Frame with Fiberglass Roof

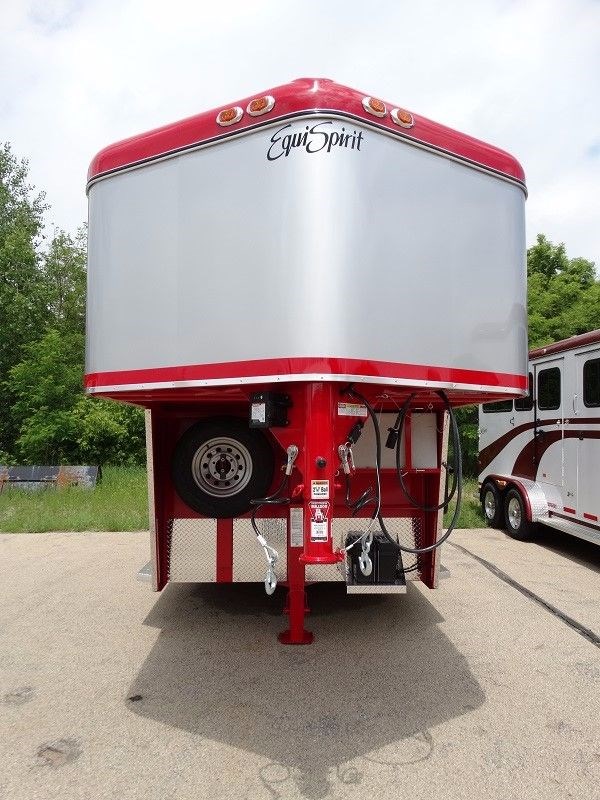

Hitch: Adjustable Height 2 5/16" Gooseneck

Dimensions

• Overall Length: 29'6"
• Body Length: 22'
• Rear Stall Length: 7'
• Head Area: 3'6"

Frame, Roof & Floor

• GatorShield galvanized frame
• Seamless one-piece molded fiberglass roof (leak-free)
• 2" x 8" pressure-treated pine floor with lifetime warranty
• 16" and 24" on-center galvanized steel cross-members
• 1" Styrofoam insulation between walls throughout trailer
• Rubber floor mats covering entire horse area

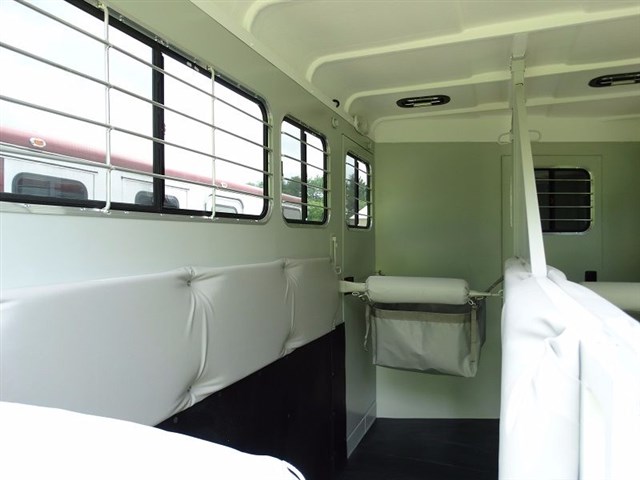

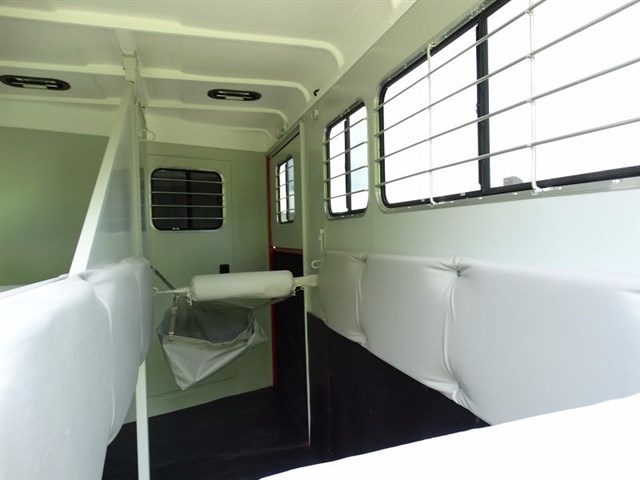

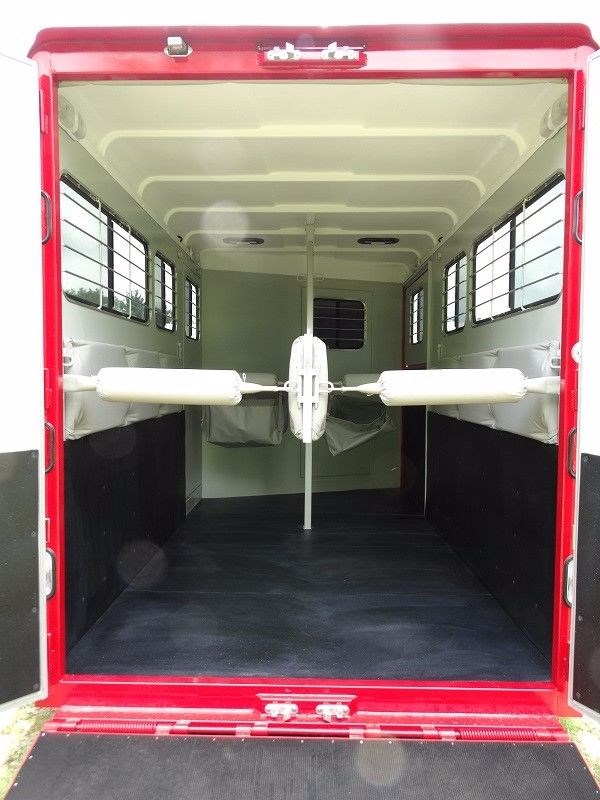

Horse Area Features

• Rubber-lined interior horse walls
• Galvanized bulkhead wall with opening window
• Raised dressing room floor (no lip for easy sweeping)
• Removable swinging horse/shoulder divider
• Removable front center post in rear stalls
• Solid removable swinging head divider
• Quick-release padded butt and breast bars
• Padded side walls and center divider (2" foam & vinyl)
• Rear header pad over rear doors
• (3) interior lay-flat tie rings per horse

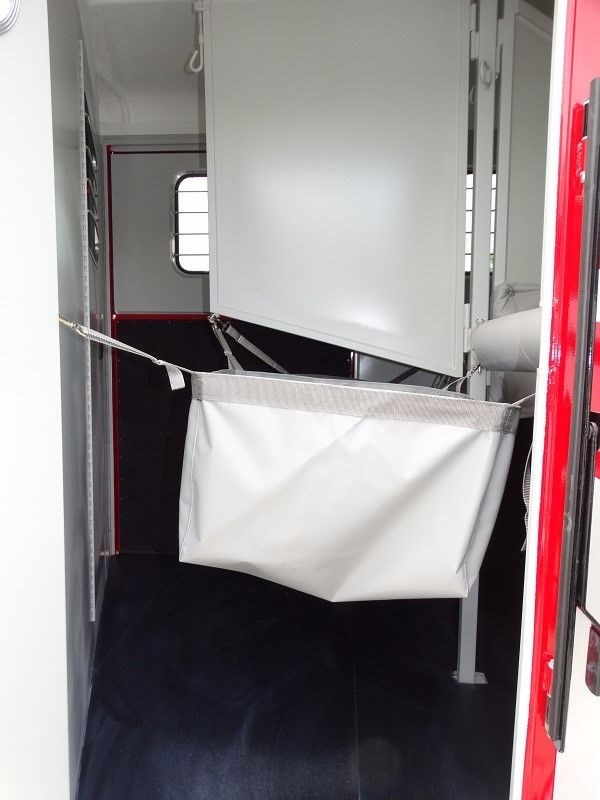

• (2) vinyl feed bags (one per horse)

Ventilation & Lighting

• (2) dual-opening aluminum roof vents (one per horse)
• (4) dome lights in horse area
• (2) dome lights in gooseneck dressing room
• Exterior remote master switch for horse area lights
• Exterior remote master switch for dressing room lights

Doors & Ramps

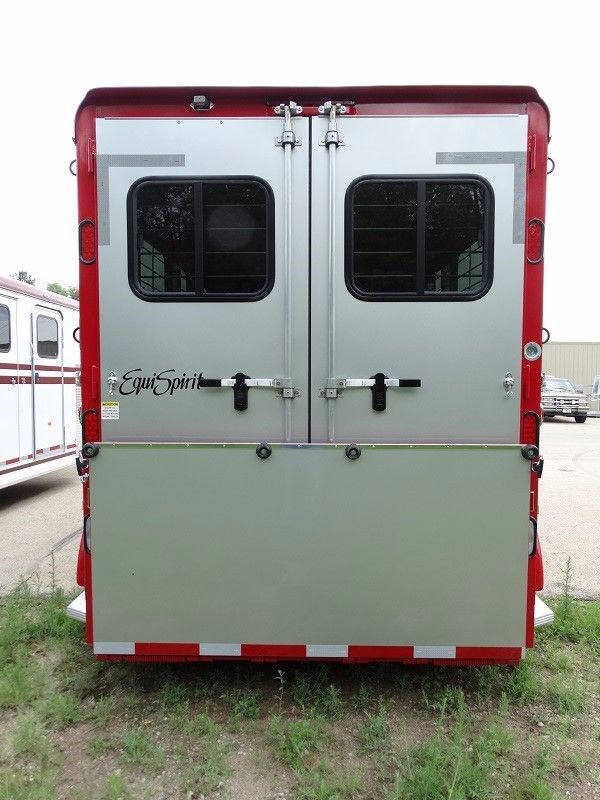

• Full-height rear doors with 20" x 24" sliding windows and screens
• 48" low-incline rear ramp over full-height doors

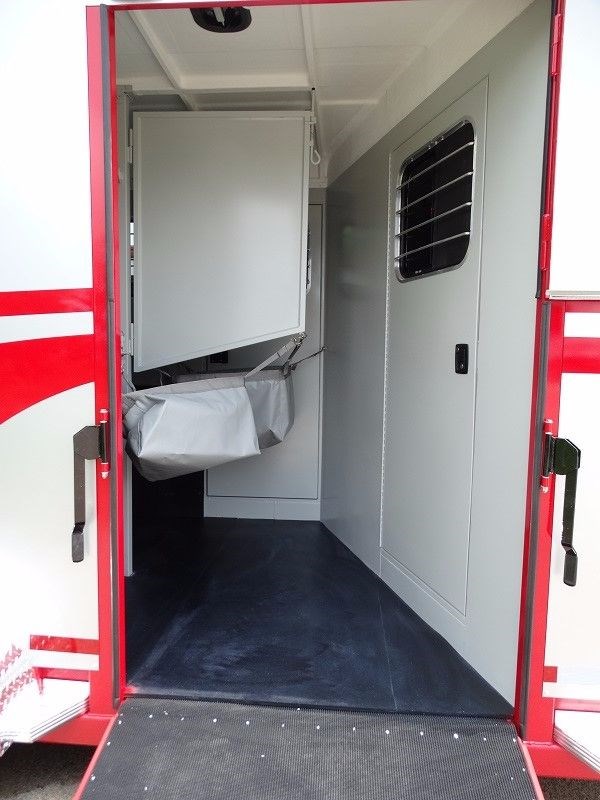

• 48" side unload ramp with upper storm door and window
• 30" dressing room door with 20" x 24" window
• 30" side walk-through door with exterior butterfly safety latches
• Lifetime warranty marine-grade plywood in all ramps

Axles, Brakes & Tires

• (2) 5,200 lb rubber torsion axles
• Electric brakes on both axles (self-adjusting)
• ST225/75R15 Load Range D upgraded tires
• Aluminum rims
• Spare tire mounted under gooseneck

Exterior Features

• Full aluminum running boards
• Non-rust rubber ramp latches
• Rear ramp safety latch
• (4) exterior tie rings (two per fender)
• 14 LED running lights (exceeds DOT requirements)
• (8) LED brake/turn signal lights
• Backup lights
• Chrome light guards on all running lights
• Breakaway battery mounted inside dressing room nose wall

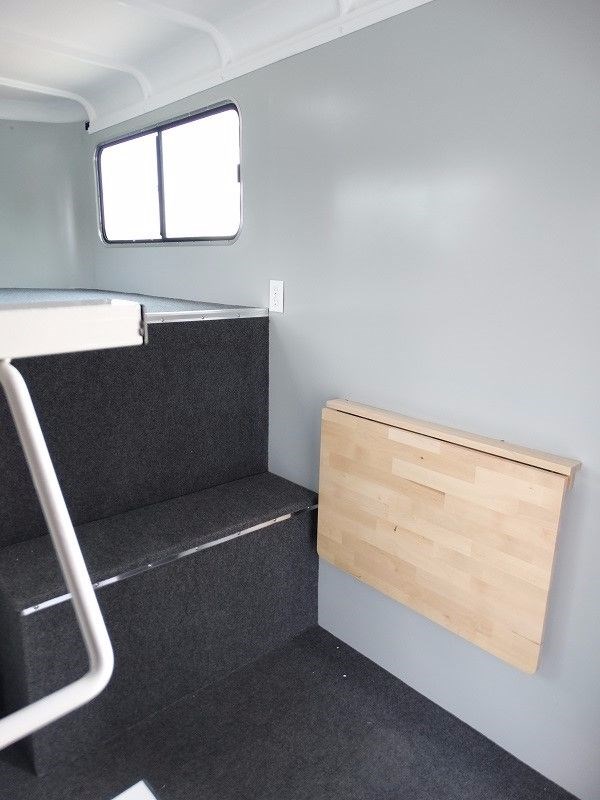

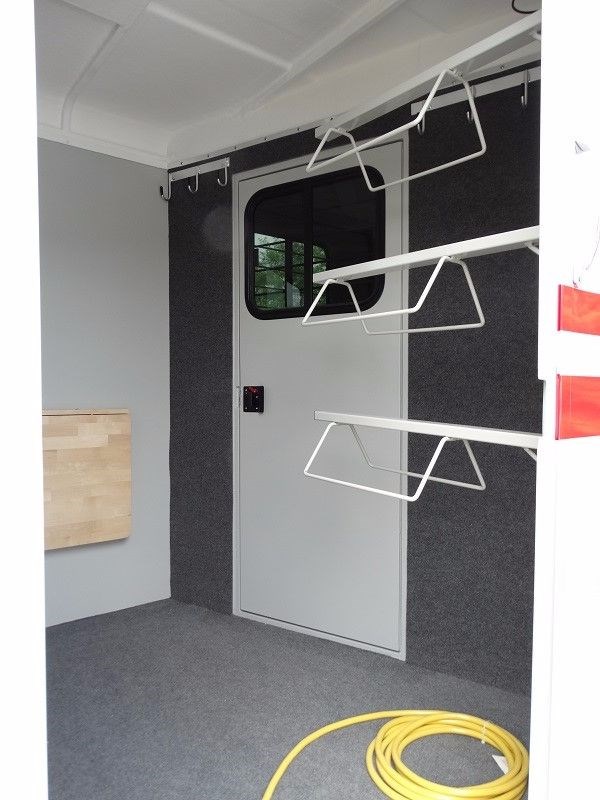

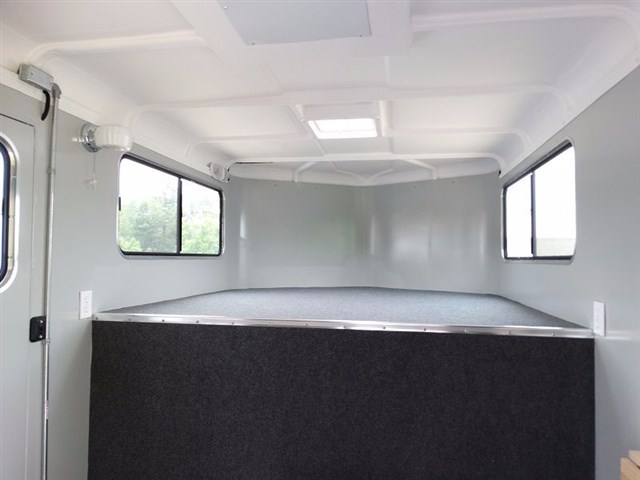

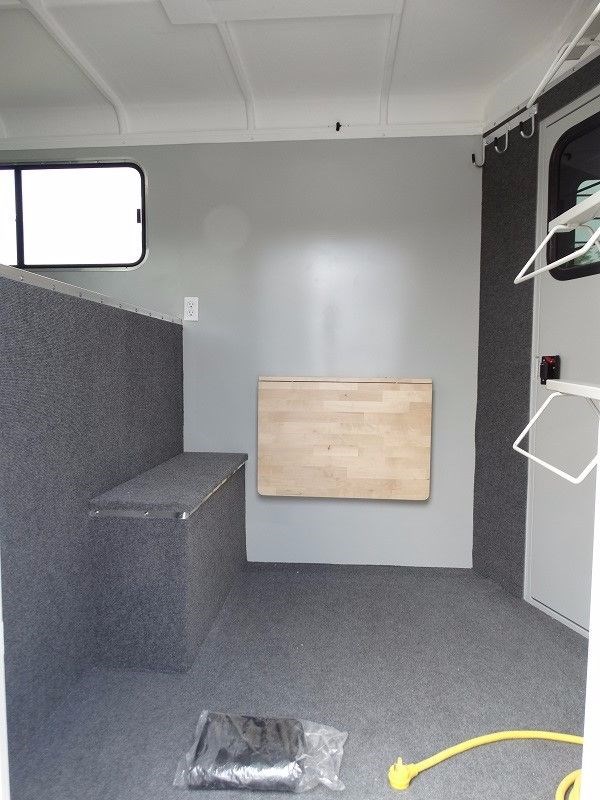

Dressing Room

• Carpeted floor and bulkhead wall
• Large brush tray mounted on door
• (6) bridle hooks

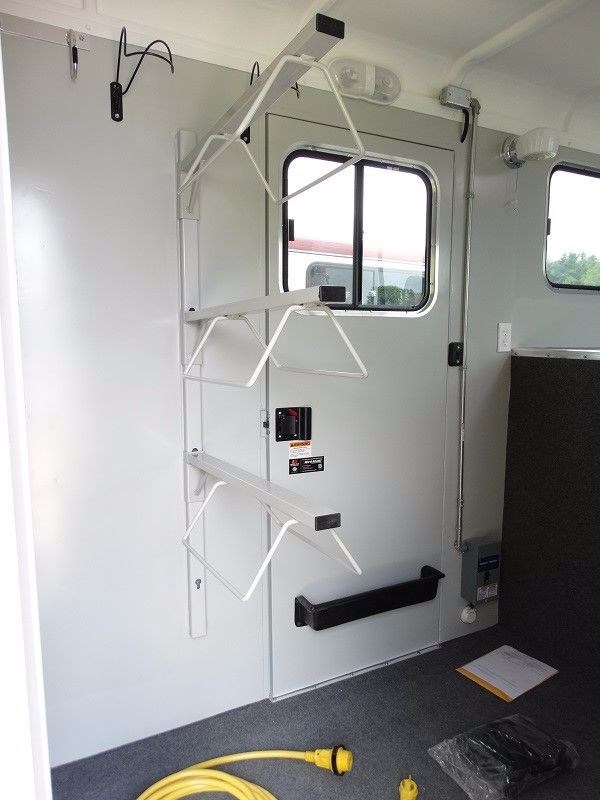

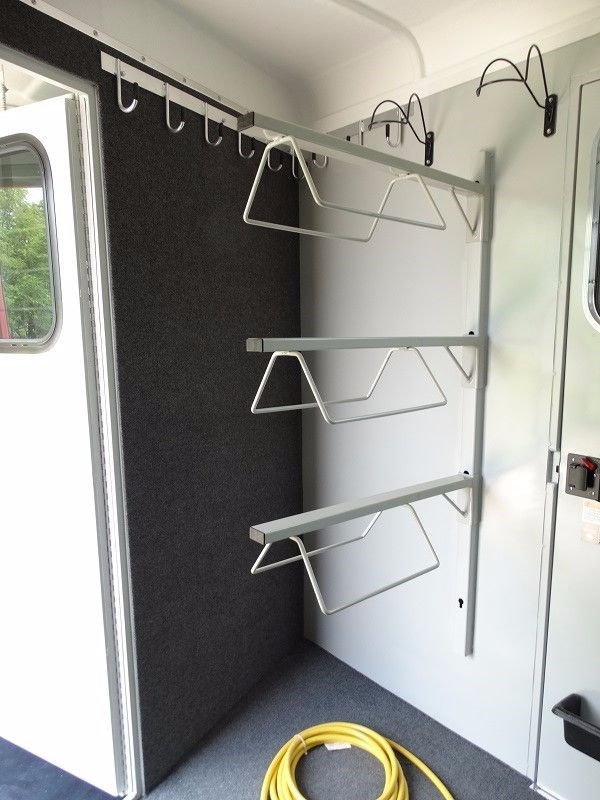

• (2) adjustable wire saddle racks
• (2) helmet racks
